High Strength Modified PBT/PET Alloy Resin for Automotive Connectors and Electrical Components-Baekeland (Xiamen)

Baekeland
In stock
$1.40
$1.40
customers are viewing this product

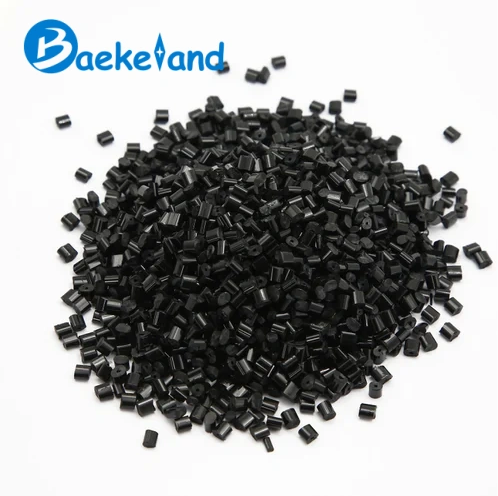

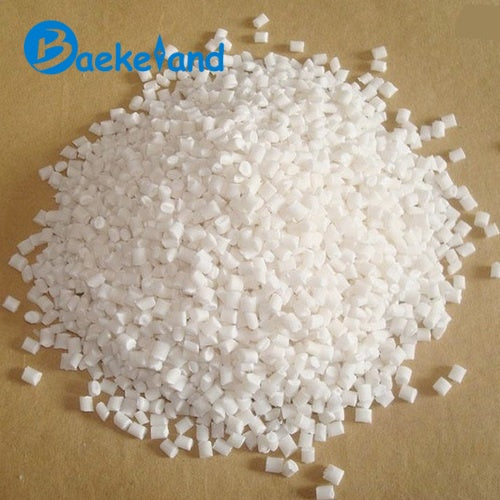

Baekeland (Xiamen) Modified PBT/PET Alloy Resin is an advanced engineering plastic made by blending polybutylene terephthalate (PBT) and polyethylene terephthalate (PET) in a controlled ratio, often enhanced with glass fiber, flame retardants, impact modifiers, or UV stabilizers.

This material inherits the excellent chemical resistance and dimensional stability of PBT, while benefiting from PET’s superior mechanical strength and thermal resistance. The result is a high-performance polymer alloy suitable for automotive electrical systems, EV connectors, high-precision industrial parts, and appliance components.

Key Features:

✅ High mechanical strength – ideal for structural and load-bearing applications

✅ Excellent dimensional stability – minimal warping, low shrinkage

✅ Superior chemical and hydrolysis resistance – suitable for harsh environments

✅ Flame retardant grades available – compliant with UL94 V-0

✅ Enhanced thermal performance – HDT up to 200°C (with GF)

✅ Good electrical insulation – widely used in connectors, switches, terminals

✅ Recyclability – compatible with sustainability goals

Property

Test Method

Typical Value

Density

ASTM D792

1.45 g/cm³

Tensile Strength

ASTM D638

90 MPa

Flexural Modulus

ASTM D790

3,500 MPa

Notched Izod Impact (23°C)

ASTM D256

60 kJ/m²

Heat Deflection Temp (1.8 MPa)

ASTM D648

200°C

Flame Retardancy

UL 94

V-0 (Available)

Molding Temperature

-

250–270°C



Typical Applications:

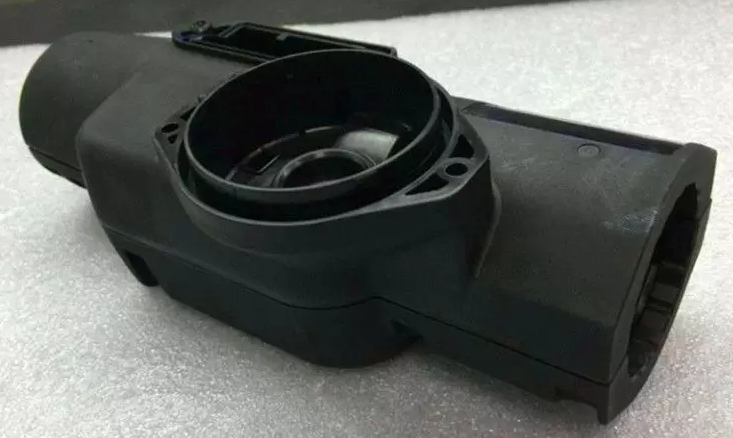

Automotive: sensor housings, EV connectors, fuse boxes, relay housings

Electrical & Electronics: circuit breaker parts, switch gears, transformer bobbins

Appliances: motor brackets, microwave components, dishwasher parts

Industrial machinery: gears, insulator mounts, enclosures for high-temp components
